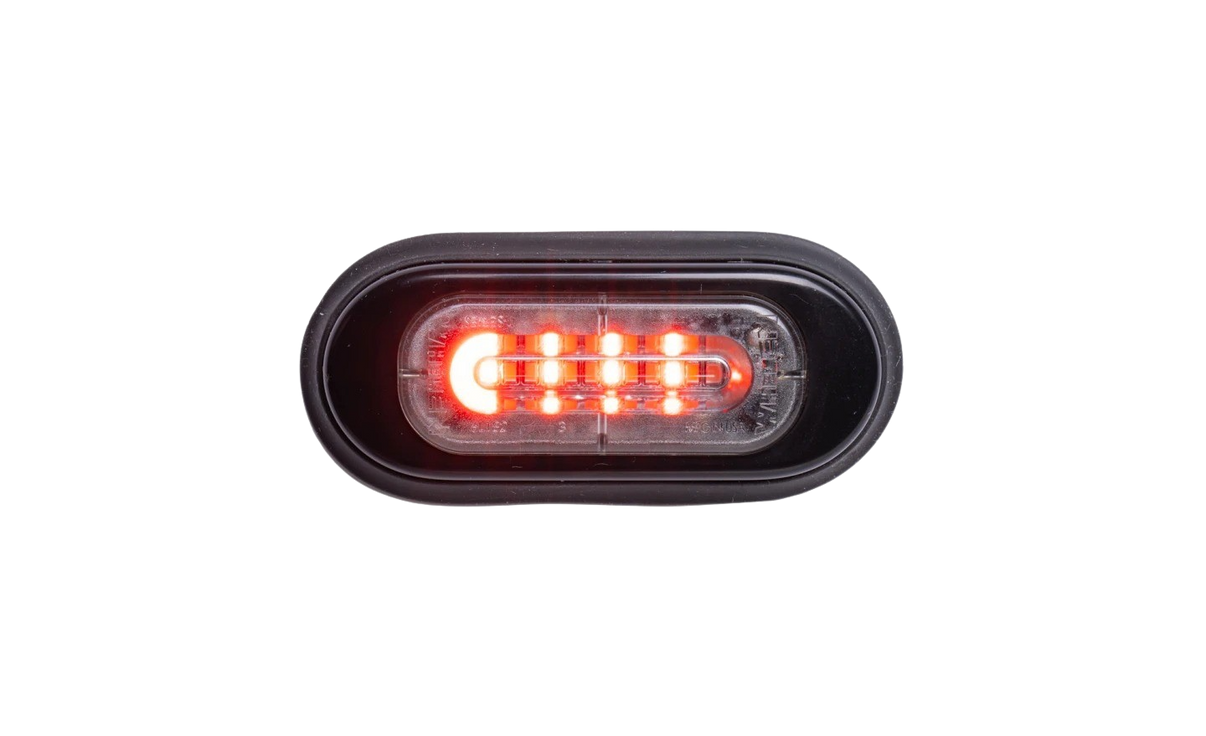

The Mini T-Series is the smallest lighthead in the T-Series family, delivering high-performance warning and illumination in a compact design. It features Linear Super-LED® technology and multiple Scan-Lock™ flash patterns. Available in SOLO™, DUO™, and TRIO™ models to suit any situation, it is also durable with hard-coated lenses and E Block™ technology for protection in harsh conditions.
FEATURES
-
Trusted T-Series Performance: The versatility and reliability of our popular T-Series lightheads reimagined to deliver maximum performance in a smaller package
- Ultra-Slim Profile: With a depth of only 1/2” for seamless integration
- Cutting-Edge Technology: Equipped with Dynamic Variable Intensity™ (DVI™), E Block™ Protection, and Steady-Lock™ for advanced functionality
SPECIFICATIONS
| Optics | Linear Super-LED®: SOLO™, DUO™ and TRIO™ models available |
| Technology |
SmartLED®: Self-contained electronics power and flash LEDs without the need for external flashers, ballasts, or power supplies Dynamic Variable Intensity™ (DVI™): Gradually adjusts light intensity for improved nighttime visibility and safety E Block™: Patented watertight seal prevents moisture from entering the lighthead Steady-Lock™: Automatically set flash pattern to Steady when paired with a Core® system Scan-Lock™: Advanced flash pattern control Sync: Connect multiple Whelen devices for synchronized or alternating flash patterns Low Power models available |
| Flash Patterns | 36 Scan-Lock™ flash patterns including Steady-Burn |
| Control | SmartLED® |
| Customization |
Flanges: Black (default), Chrome or White Optional Additions: Grommet Mount Kit, License Plate Bracket |
| Construction |
Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals E Block™: Patented watertight seal prevents moisture from entering the lighthead Conformal Coated Electronics: Environmental, moisture, and vibration resistance |
| Mounting | Surface Screw Mount or Stud |
| Included Cables & Hardware | 22 AWG 6.5" (16.51 cm) Pigtail |
| Certifications |
SAE Standards SAE J595 SAE J845 Environmental IP67 Regulatory Compliance CA Title 13 R10 R65 |
| Warranty | 10-year |
| Voltage | 10-30 VDC |
| Amps |
SOLO™: 0.80 (peak), 0.50 (avg.) DUO™: 0.80 (peak), 0.50 (avg.) TRIO™: 0.35 (peak), 0.22 (avg.) |
| Size |
Stud mount: Width: 2.35" (5.97 cm) Height: 1.03" (2.62 cm) Depth: 0.48" (12.19 mm) Stud mount with flange: Width: 3.34" (8.48 cm) Height: 1.49" (3.78 cm) Depth: 0.48" (12.19 mm) Surface mount: Width: 3.34" (8.48 cm) Height: 1.49" (3.78 cm) Depth: 0.54" (13.72 mm) |
DIMENSIONS
DOCUMENTATION
Product Sheets & Brochures
Install Guides
| Specification name | Specification Value |
|---|---|
| Color pattern | Red, Amber, Blue, Green, White, Red (Smoked Lens), Blue (Smoked Lens), Amber (Smoked Lens), White (Smoked Lens), Red/White , Red/Amber, Blue/Amber, Red/Green, Red/Blue, Green/White, Amber/White, Blue/White, Blue/Green, Amber/Green, Amber/White (Smoked Lens), Red/Blue (Smoked Lens), Red/Amber (Smoked Lens), Red/White (Smoked Lens), Red/Blue/Amber, Red/Blue/White, Red/Blue/Green, Red/Amber/White, Red/Amber/Green, Red/Green/White, Blue/Green/White, Green/Amber/White, Blue/Amber/Green, Blue/Amber/White |
| Fit type | Surface Mount, Stud Mount |
| Lighting features | Single Colour (SOLO), Dual Colour (DUO), Triple Colour (TRIO) |
