The M6 EZ Scene Light™ offers versatility and high-performance lighting for emergency and utility vehicles. With various turn-on styles and low-power settings, it allows you to easily adjust the brightness and conserve energy. Its patented Linear-LED® reflector assembly and unique lens shape provide maximum brightness and reduced power consumption for optimal scene visibility.
FEATURES
- Linear-LED® Technology: Patented reflector assembly delivers unmatched high-intensity illumination
- Energy Efficient: Designed for low current consumption
- Customizable Turn-On Styles: Choose from multiple options, including Slow (800 ms), Medium (400 ms), Fast (200 ms), and Instant (0 ms)
- Adjustable Power Levels: 3 low-power settings (25%, 50%, and 75%) provide situation-specific lighting for a variety of scenarios
-
Simplified Installation: Features an identical mounting footprint as the M6 lighthead for hassle-free setup
SPECIFICATIONS
| Optics | Linear-LED® Reflector Assembly |
| Technology | Gradient Opti-Scenelight™: Delivers efficient use of light |
| Control | SmartLED® |
| Customization | Flanges: Black or Chrome |
| Construction |
Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals Conformal Coated Electronics: Environmental, moisture, and vibration resistance |
| Mounting | Surface mount via two screws |
| Included Cables & Hardware | 9” (22.86 cm) pigtail cable |
| Certifications |
Environmental IP67 |
| Warranty | 10-year |
| Voltage | 10-30 VDC |
| Amps |
12 VDC: 2.05 (peak), 0.82 (avg.) 24 VDC: 1.09 |
| Size |
Width: 6.77" (17.20 cm) Height: 4.37" (11.10 cm) Depth: 1.71" (4.34 cm) |
DIMENSIONS
DOCUMENTATION
Product Sheets & Brochures
| Specification name | Specification Value |
|---|---|
| Color pattern | White |
| Fit type | Surface Mount |

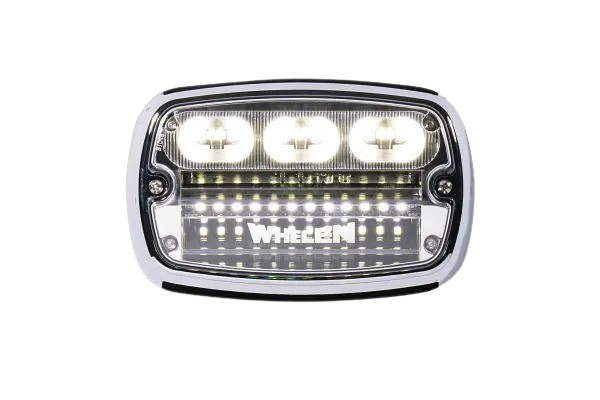

Whelen M6 EZ Scene Light
WhiteGet notified when this item is back in stock
Press & drag to view
Smoked Lens
Regular Lens
