As part of our M Series®, the Whelen M2 Series lighthead is designed for utility and emergency vehicles, with Linear Super-LED® technology for consistent and intense illumination. Its low-profile design and durable, impact-resistant lenses make it versatile and reliable in the most critical situations. Choose from single- or dual-color models for primary warning or scene lighting.
FEATURES
- Compact, Powerful Design: Sleek design combines efficiency with space-saving performance
- Advanced Optics: Unique lens shape and patented Linear-LED® designed reflector assembly
- Unmatched Performance: Delivers high-intensity warning with energy-efficient low current consumption
-
Cutting-Edge Technology: Designed with industry-leading Whelen technology for optimal performance and reliability
SPECIFICATIONS
| TIR Models | |
| Optics | Super-LED® and Wide-Angle |
| Technology |
SmartLED®: Self-contained electronics power and flash LEDs without the need for external flashers, ballasts, or power supplies Scan-Lock™: Advanced flash pattern control Sync: Connect multiple Whelen devices for synchronized or alternating flash patterns |
| Flash Patterns |
SOLO: 25 Scan-Lock flash patterns Split-Color: 69 Scan-Lock flash patterns |
| Control | SmartLED |
| Customization |
Configuration: SOLO or Split-Color Lenses: Clear or Color Optional Additions: Black or Chrome Flange, Grommet Mount Kit or Pedestal Mount Kit |
| Construction |
Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals Conformal Coated Electronics: Environmental, moisture, and vibration resistance E Block™: Patented watertight seal prevents moisture from entering the lighthead |
| Mounting | Surface |
| Included Cables & Hardware | 18 AWG 12" (30.48 cm) Pigtail |
| Certifications |
SAE Standards SAE Class 1 SAE J595 SAE J845 Emergency Vehicle Standards NFPA 1900 KKK-A-1822F Environmental IP67 Regulatory Compliance CA Title 13 R10 R65 |
| Warranty | 10-year |
| Voltage | 12/24 VDC |
| Amps | 1.11 (peak), 0.39 (avg.) |
| Size |
Width: 3.65” (9.27 cm) Height: 2.07” (5.26 cm) Depth: 0.92” (2.33 cm) |
DIMENSIONS
DOCUMENTATION
Product Sheets & Brochures
| Specification name | Specification Value |
|---|---|
| Color pattern | Red, Amber, Blue, Green, White |
| Fit type | Surface Mount |

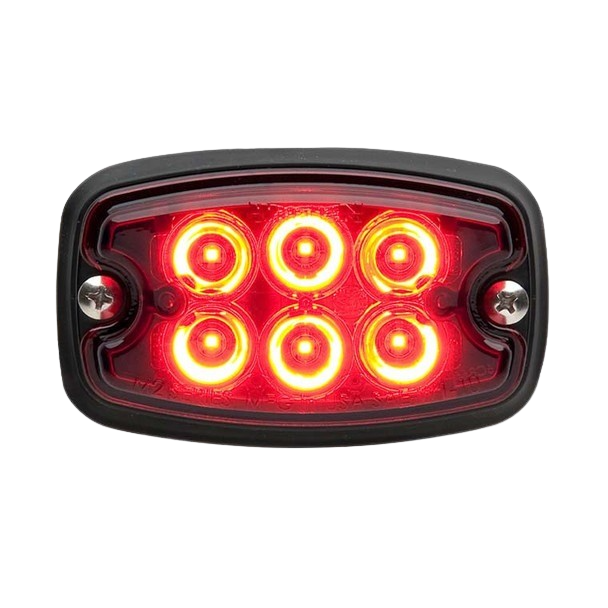

Whelen M2 Series
