Improve visibility with Whelen WorkSide lights. They are easy to install and perfect for emergency, work, or utility vehicles, offering exceptional illumination and visibility around the vehicle.
FEATURES
- Wide Ground-Focused Illumination: Projects light down and out, covering a 10’x10' area for enhanced visibility and improved work area lighting
- Slim and Sleek Design: Features a low-profile Strip-Light™ style footprint for a streamlined appearance
- Customizable Turn-On Styles: Choose from multiple options, including Slow (800 ms), Medium (400 ms), Fast (200 ms), and Instant (0 ms)
- Adjustable Power Levels: 3 low-power settings (25%, 50%, and 75%) provide situation-specific lighting for a variety of scenarios
-
Energy Efficient: Designed for low power and low current consumption
SPECIFICATIONS
| Technology | E Block™: Patented watertight seal prevents moisture from entering the lighthead |
| Flash Patterns | 4 Scan-Lock Patterns |
| Customization | Flanges: Black or Chrome |
| Construction |
Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals E Block™: Patented watertight seal prevents moisture from entering the lighthead |
| Mounting | Surface mount |
| Included Cables & Hardware | Pigtail cable |
| Certifications |
Environmental IP67 |
| Warranty | 10-year |
| Voltage | 10-30 VDC |
| Amps |
12.8 VDC: 1.32 (peak), 0.52 (avg.) 25.6 VDC: 0.70 (peak), 0.28 (avg.) |
| Size |
Width: 14.23” (36.14 cm) Height: 2.29” (5.82 cm) Depth: 1.03” (2.62 cm) |
DIMENSIONS
DOCUMENTATION
Product Sheets & Brochures
| Specification name | Specification Value |
|---|---|
| Color pattern | White |
| Fit type | Surface Mount |

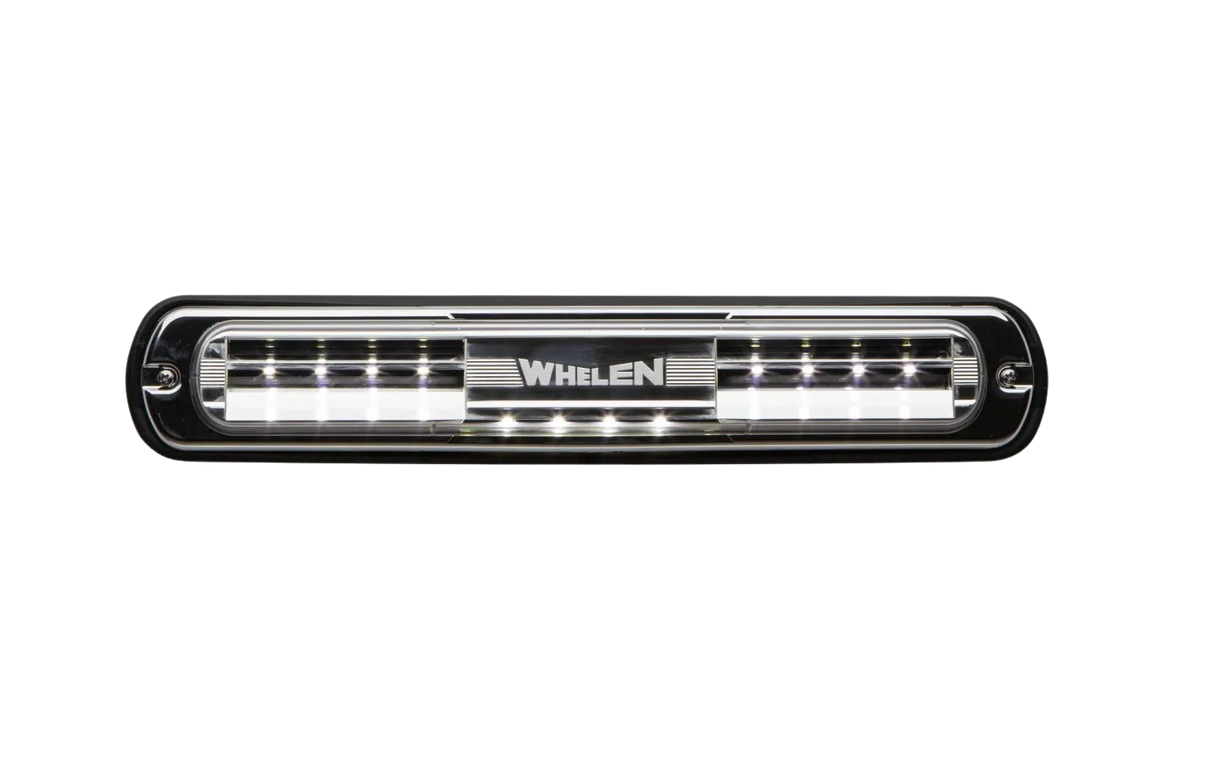

Whelen WorkSide
