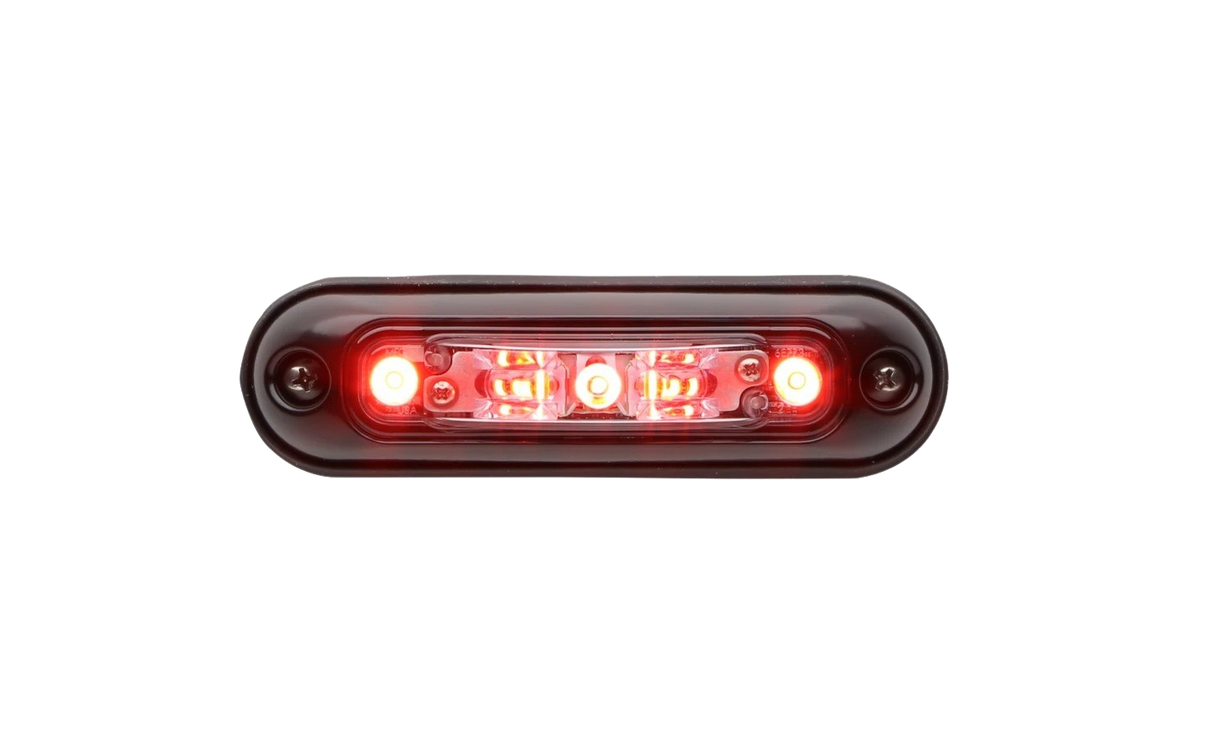

Whelen ION V-Series™

Introducing the Whelen ION V-Series™ - a three-in-one lighthead that combines warning, flood, and puddle light capabilities for enhanced visibility from all angles. Available in both three-in-one combination and single-color models, it easily adapts to meet the unique needs of emergency and commercial vehicles. Its compact design and versatile mounting options make for easy installation. Improve safety and efficiency with the durable and reliable ION V-Series.

FEATURES

Innovative V-Shaped Optics: Provides multiple planes of light for comprehensive coverage from every angle
Multi-Function Solution: 3-in-1 design combines Warning, Alley, and Puddle lights in a single compact unit for versatile performance
Wide-Angle Coverage: Single-Color models pair 180° illumination with TIR™ optics for superior directional warning in emergency and utility applications

SPECIFICATIONS

Optics	Combination TIR™ Alley Optics with Linear Warning
Technology	SmartLED®: Self-contained electronics power and flash LEDs without the need for external flashers, ballasts, or power supplies Steady-Lock™: Automatically set flash pattern to Steady when paired with a Core® system Scan-Lock™: Advanced flash pattern control Sync: Connect multiple Whelen devices for synchronized or alternating flash patterns
Flash Patterns	33 Scan-Lock™ flash patterns
Control	SmartLED®
Customization	Configuration: 3-in-1 combination Warning, Spotlight, and Flood or Single-Color Warning-only Mounts: Universal or Surface Optional Additions: Swivel Mount, Pedestal Mount Kit, Grommet Mount Kit, Rear Hatch Brackets, Grille Mount Kit, License Plate Bracket Speciality Models: Vehicle-Specific Mirror-Beam Models
Construction	Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals Conformal Coated Electronics: Environmental, moisture, and vibration resistance Die-Cast Aluminum Housing: Black
Mounting	Universal or Surface (via 2 screws)
Included Cables & Hardware	22 AWG 12" (30.48 cm) Pigtail
Certifications	SAE Standards SAE Class 1 SAE J595 SAE J845 Emergency Vehicle Standards KKK-A-1822F Contributor Regulatory Compliance CA Title XIII R10 R65 Certifications may vary by model and configuration
Warranty	10-year
Voltage	12 VDC
Amps	Combination models - Warning, Flood, and Puddle: 0.89 (peak), 0.57 (avg.)
Size	Universal Mount Width: 4.09” (10.39 cm) Height: 1.04” (2.64 cm) Depth: 2.19” (5.56 cm) Surface Mount Width: 5.91” (15.01 cm) Height: 1.69” (4.29 cm) Depth: 1.98” (5.03 cm)

DIMENSIONS

DOCUMENTATION

Product Sheets & Brochures

V-Series - Download

Product specifications table
Specification name	Specification Value
Color pattern	Red, Blue, Amber, Red/White , Amber/White, Blue/White
Fit type	Surface Mount, Universal
Item condition	New
Lighting features	Single Colour (SOLO), 3-in-1 Combination (Spot & Puddle Light)

Color pattern

Red, Blue, Amber, Red/White , Amber/White, Blue/White

Fit type

Surface Mount, Universal

Item condition

New

Lighting features

Single Colour (SOLO), 3-in-1 Combination (Spot & Puddle Light)
