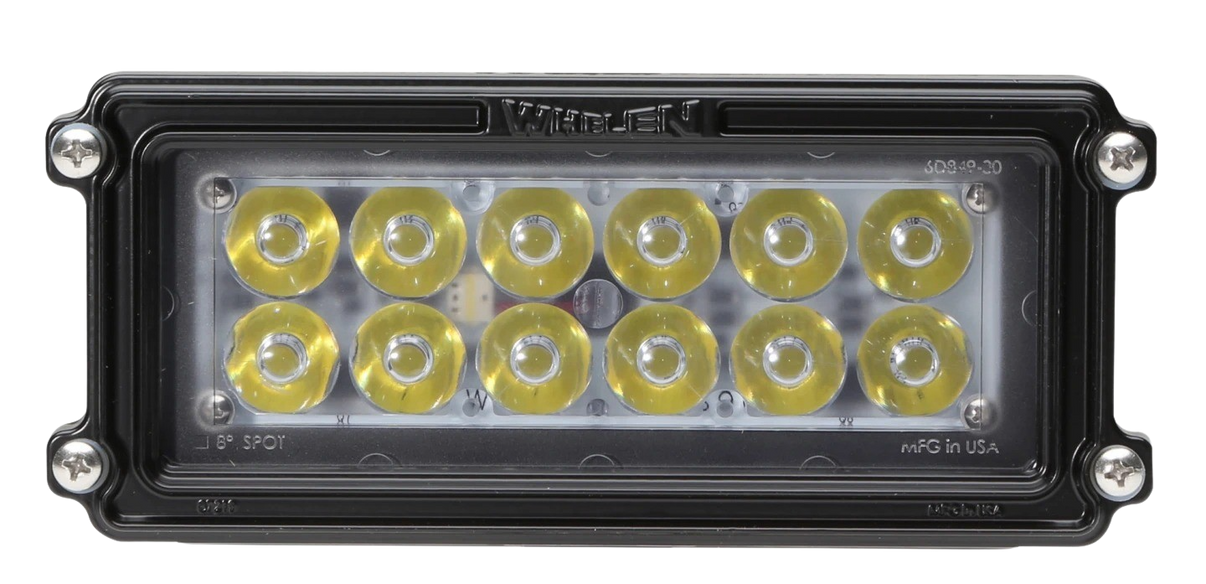

Introducing the Pioneer SlimLine - a high-performance scene light that mimics bright daylight and offers exceptional clarity and visibility in tough conditions. With impact-resistant lenses and removable options, it's perfect for emergency services, construction, and utility vehicles. Available in single or dual models and equipped with Super-LED® technology, it provides flexible installation and powerful illumination.
Due to the large variety products in Pioneer Plus range you are encouraged to contact our sales team for specific sizes available that may not be listed on our website for special orders.
FEATURES
- Instant Response: LEDs provide immediate On/Off functionality, eliminating high inrush current and ramp-up time
-
Daylight Simulation: Correlated Color Temperature (CCT) of 5,700° Kelvin simulates bright midday light for optimal visibility
- Easy Lens Replacement: Removable lens retainer allows quick and hassle-free optic lens changes
SPECIFICATIONS
| Optics |
Super-LED® Floodlight/Spotlight: single and dual models available Single Models: Standard: 8° Spotlight Pattern Lens Additional Included Lens: 40° x 20° Flood Dual Models: Standard: 8° Spotlight Pattern Lens Additional Included Lenses: Dual 40° x 20° Flood and Combination 8° Spotlight & 40° x 20° Flood |
| Customization |
Configuration: Single or Dual Housing: Black or White |
| Construction |
Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals Injection Molded Polycarbonate Lenses: Provide impact resistance Die-Cast Aluminum Powder-Coated Housing 100% Solid-State Electronics |
| Mounting | Bail Bracket mount or Brow mount |
| Included Cables & Hardware | 6’ (1.83 m) cable Powder-coated stainless steel bail bracket |
| Certifications |
SAE Standards SAE 578 Color Temperature Environmental IP67 |
| Warranty | 5-year |
| Voltage | 12/24 VDC |
| Amps |
Single Width: 3.0 (avg.) Dual Width: 6.0 (avg.) (3 per side) |
| Size |
Single Width: 7.06" (17.93 cm) Dual Width: 12.66" (32.16 cm) Height: 3.23" (8.20 cm) Depth: 2.72" (6.91 cm) |
DIMENSIONS
DOCUMENTATION
Product Sheets & Brochures
| Specification name | Specification Value |
|---|---|
| Color pattern | Black, White |
| Lighting features | Floodlight, Combination Flood/Spot with Procleara® |
Whelen Pioneer SlimLine
Single Panel / BlackGet notified when this item is back in stock
Press & drag to view
Smoked Lens
Regular Lens
