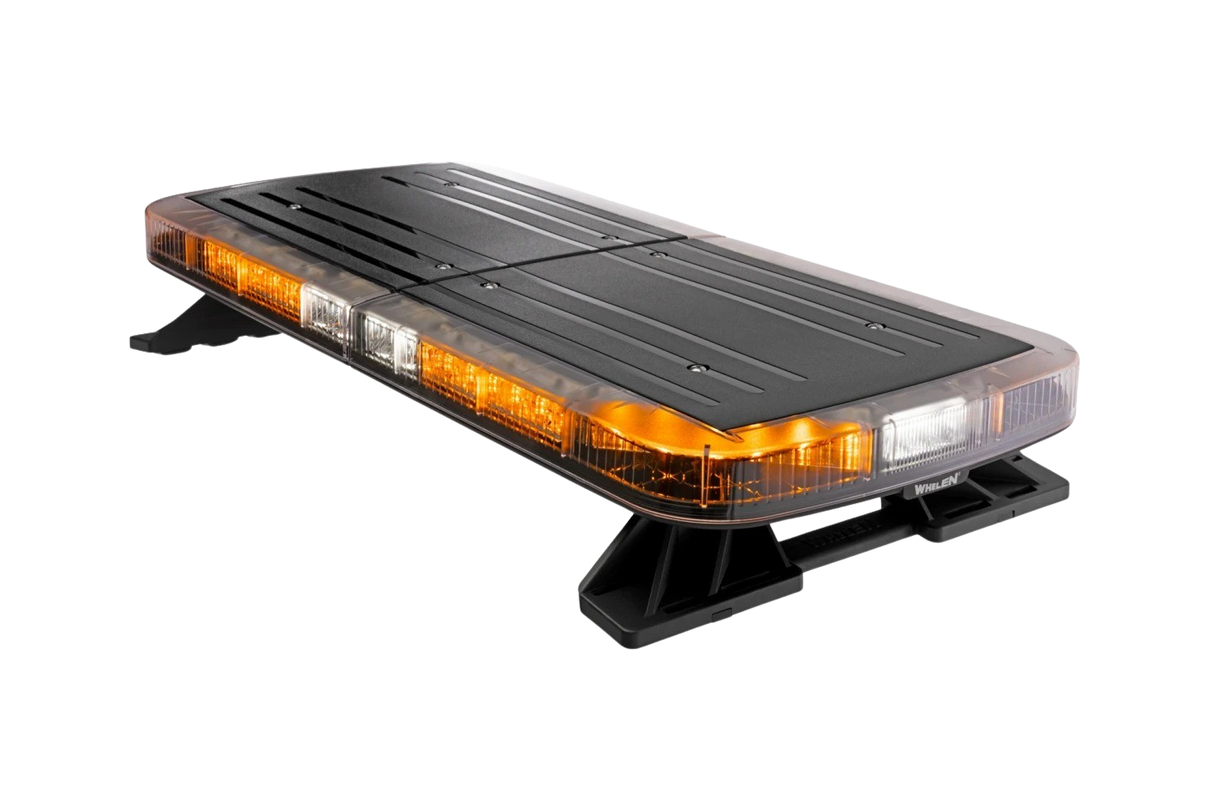

Mini Edge 9X
The Mini Edge® 9X lightbar is designed for vehicles that demand high visibility in a more compact footprint. This mini lightbar features Whelen’s powerful Linear Super-LED® modules, ensuring optimal brightness and durability in tough conditions. Perfect for service vehicles, tow trucks, and smaller emergency fleets, the Mini Edge 9X delivers exceptional performance in a space-saving form, ensuring your vehicle is ready to respond in any situation.
(We build our lightbars to order and only offer generic common layouts online, for a customised lightbar specific to your needs please contact our sales team. nzsales@emergenz.nz)
FEATURES
- Cost Effective: Designed to deliver exceptional value
- Customizable Design: Tailor your lightbar to your exact needs using WeCad lightbar designer
- Built for Durability: Features molded polycarbonate black top that repels hail and other environmental damages
- Profile Options: Choose between short (9XS) and tall (9XT) profiles to suit your application
- Customizable Tops: Comes standard with a Black molded polycarbonate top, with optional upgrades to Amber, Blue, or Red for enhanced aesthetics and aerial recognition
SPECIFICATIONS
| Optics | Linear Super-LED®: SOLO™, DUO™ and DYAD™ models available |
| Technology |
Dynamic Variable Intensity™ (DVI™): Gradually adjusts light intensity for improved nighttime visibility and safety. (WeCanX Models) Scan-Lock™: Advanced flash pattern control Rota-Beam™: Solid-state “rotating” beacon simulation with no moving parts |
| Flash Patterns |
Standard Models: 67 Scan-Lock™ flash patterns Rota-Beam Models: 10 Scan-Lock™ flash patterns SignalAlert™ 75 default for magnetic mount |
| Control | WeCan® and WeCanX® models available |
| Customization |
Lenses & Dividers: Clear, Color, or Smoked Color Filters: Available for full customization Available Modules: Take-Down and Alley Lights (permanent mount models) |
| Construction |
Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals Advanced Thermal Design: Reduces LED stress during extended use Aluminum Top: repels hail and environmental damages Extruded Aluminum Platform Black Polycarbonate Base 100% Solid-State Electronics One-Piece Uni-Dome Construction: Single sealing point ensures weatherproof integrity Center Dividers with LIM (Liquid Injection Molded) Seals: Protect internal components |
| Mounting | Permanent or Magnetic mount |
| Included Cables & Hardware |
Permanent mount includes 15’ (4.57 m) cable Magnetic mount includes cigar plug with On/Off switch with LED “On” indicator, and ScanLock™ pattern control switch |
| Certifications |
SAE Standards SAE Class 1 Emergency Vehicle Standards NFPA 1900 Contributor Regulatory Compliance R65 Class 1 |
| Warranty |
WeCanX Model I/O Boards: 10-year Standard Current Model I/O Boards: 5-year WeCan Model I/O Boards: 2-year All Lightheads: 10-year |
| Voltage | 12 VDC |
| Size |
Available Lengths: 21.50” (54.61 cm) or 23.25” (59.06 cm) (with center section) Height: 3.75” (9.53 cm) Width: 12.50” (31.75 cm) |
DIMENSIONS
DOCUMENTATION
Product Sheets & Brochures
| Specification name | Specification Value |
|---|---|
| Color pattern | Red/White , Amber, Blue, Red/Blue |
| Fit type | Permanent Mount |
Whelen Mini Edge 9X
Red/White / Permanent MountGet notified when this item is back in stock
Press & drag to view
Smoked Lens
Regular Lens
