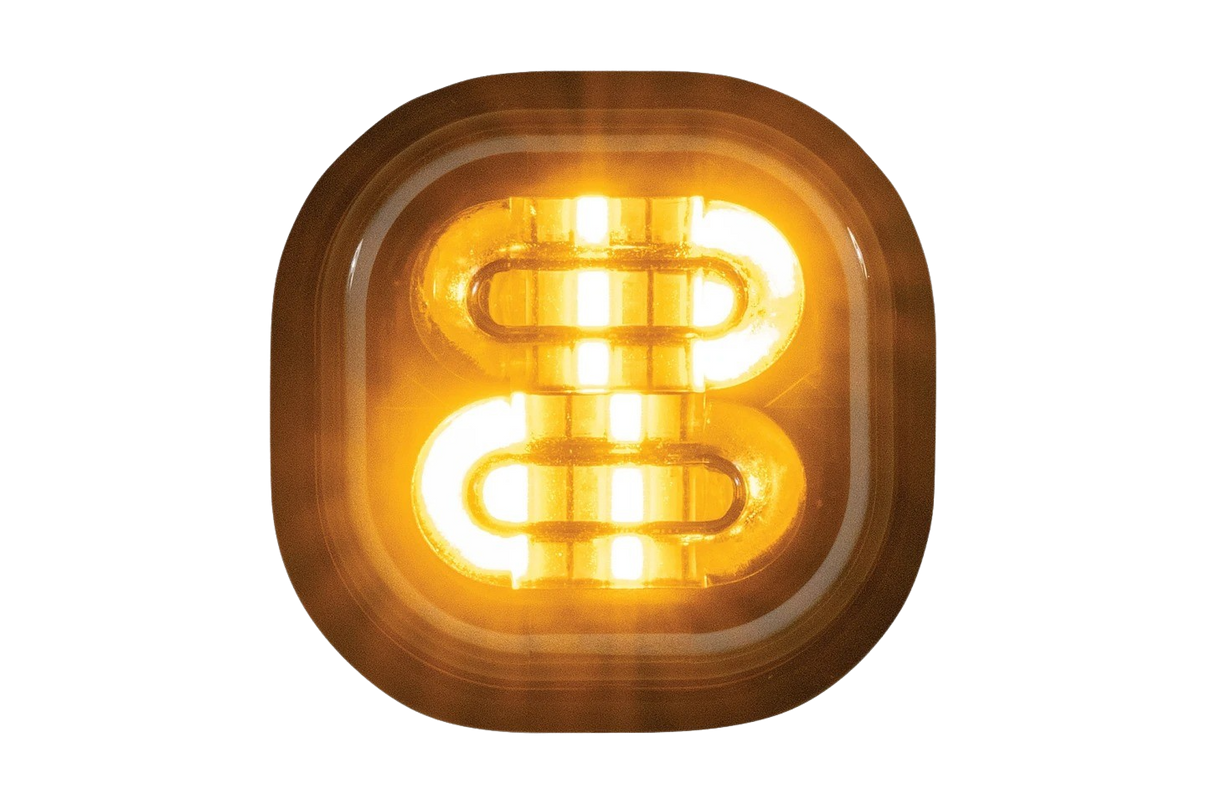

Whelen VXE Warning Light

The VXE® warning light offers a seamless blend of discretion and high visibility for emergency and commercial vehicles. Designed to integrate smoothly into a vehicle’s exterior, the VXE provides an unobtrusive, clean appearance that maintains the vehicle’s sleek aesthetic without sacrificing visibility. Available in SmartLED DUO models, the VXE offers a variety of configurations. Its compact, 1-inch mounting grommet enables easy installation on various parts of the vehicle, ensuring effective visibility wherever it’s needed most. The VXE is engineered for reliability, providing bright, consistent directional lighting in a streamlined, low-profile design built to withstand the rigors of critical operations. Whether used on police cars, ambulances, fire apparatus, or commercial trucks, the VXE is ideal for those seeking an efficient, adaptable lighting solution.

FEATURES

Compact, Low-Profile Design: Maintains the vehicle’s streamlined look while delivering maximum warning power
Enhanced Visibility: DUO™ models deliver exceptional illumination for maximum impact
Convenient Mounting: Fits seamlessly with an industry-standard 1” diameter grommet for easy installation
Compatibility: Designed for use with Core, Core-S®, Core-R®, Core-C®, and ULF44 flashers (CEM16 required for Core-R and Core-C)
SmartLED Models: Same sleek design with an embedded flasher, making it easier to install and use right out of the box

SPECIFICATIONS

Warning Light
Optics	Linear Super-LED®: DUO™
Technology	SmartLED®: Self-contained electronics power and flash LEDs without the need for external flashers, ballasts, or power supplies Steady-Lock™: Automatically set flash pattern to Steady when paired with a Core® system Scan-Lock™: Advanced flash pattern control
Flash Patterns	27 Scan-Lock™ Flash Patterns
Control	SmartLED®
Customization	Lenses: Clear or Smoked
Construction	Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals Conformal Coated Electronics: environmental, moisture, and vibration resistance Die-Cast Aluminum Housing: Black Operating Temperature: -40°F to 149°F (-40°C to 65°C)
Mounting	Grommet
Included Cables & Hardware	22 AWG 9" (22.86 cm) Pigtail
Certifications	SAE Standards SAE J595 SAE J845 Environmental IP67 Regulatory Compliance CA Title 13 R10
Warranty	10-year
Voltage	10-30 VDC
Amps	12.8 VDC: 0.83 (peak), 0.52 (avg.)
Size	Width: 1.35" (3.43 cm) Height: 1.40" (3.56 cm) Depth: 0.30" (7.62 mm) Diameter: 1" (2.54 cm)

DIMENSIONS

DOCUMENTATION

Product Sheets & Brochures

VXE SmartLED - Download

Product specifications table
Specification name	Specification Value
Color pattern	Red/White , Blue/White, Amber/White, Green/White, Red/Blue, Red/Amber, Red/Green, Blue/Amber, Amber/Green, Red/Blue/White, Red/Amber/White

Color pattern

Red/White , Blue/White, Amber/White, Green/White, Red/Blue, Red/Amber, Red/Green, Blue/Amber, Amber/Green, Red/Blue/White, Red/Amber/White
