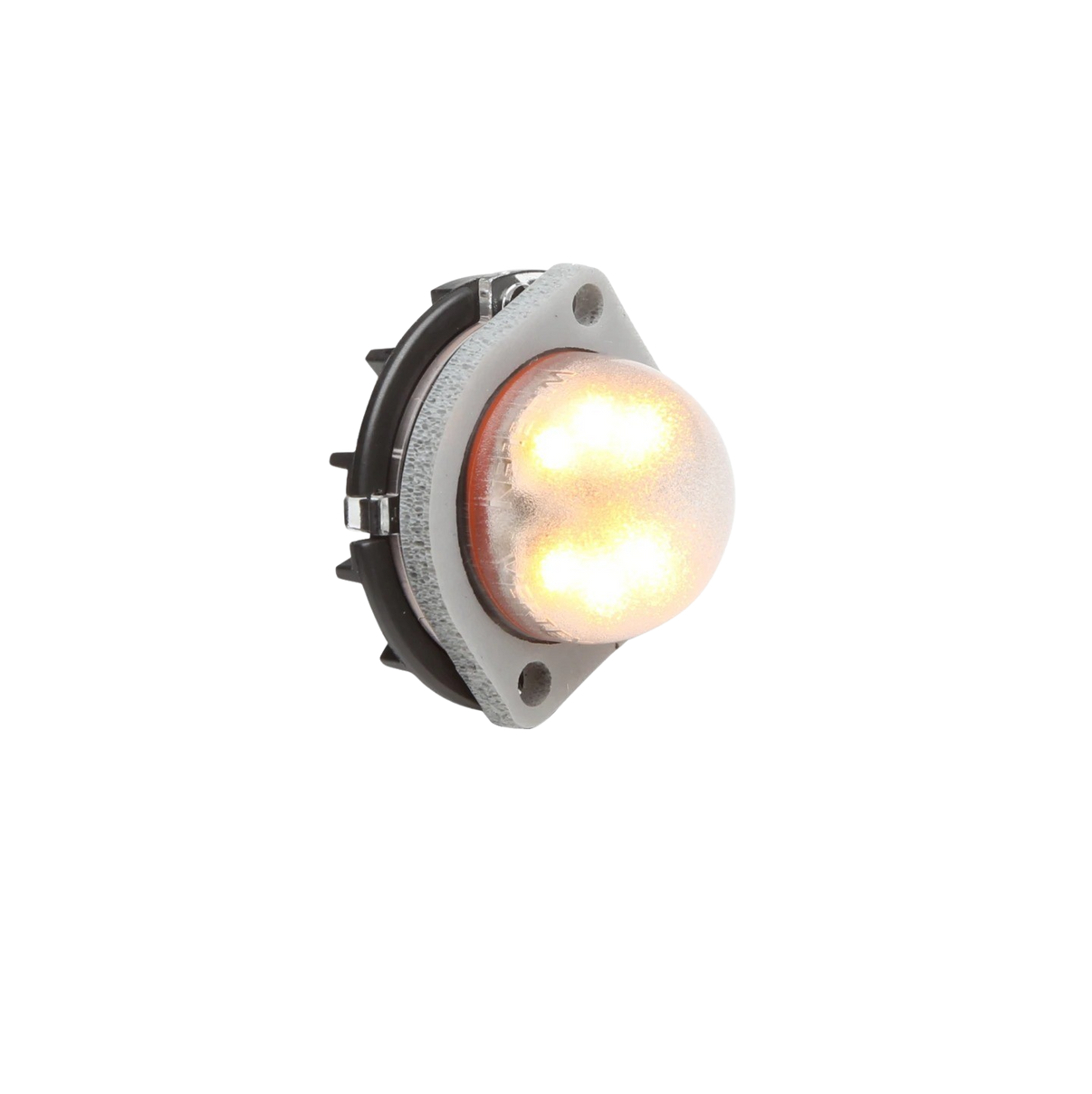

The Vertex™ lighthead is a compact, versatile hideaway light featuring Super-LED® technology for bright and reliable output. With 360-degree lenses, it provides all-around visibility and is available in different models. Durable and water-resistant, it is perfect for discreet warning and illumination in emergency and utility vehicles.
FEATURES
- Effortless Installation: Easily installs using a standard 1” hole for seamless integration into vehicle designs
- Hassle-Free Setup: Does not require additional lamp drivers, flashers, ballasts, or power supplies for installation
-
Discreet Installation: Compact design fits neatly into concealed locations, such as headlight or taillight housings
OPTIONAL FLANGE KIT
Perfect for surface mounting Vertex lights
SPECIFICATIONS
| Optics | Super-LED®: Omnidirectional |
| Technology |
SmartLED®: Self-contained electronics power and flash LEDs without the need for external flashers, ballasts, or power supplies Scan-Lock™: Advanced flash pattern control Sync: Connect multiple Whelen devices for synchronized or alternating flash patterns |
| Flash Patterns | 25 Scan-Lock™ flash patterns |
| Control | SmartLED® |
| Customization |
Optic: Omnidirectional Configuration: Single Optional Additions: Black Flange Kit |
| Construction |
Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals Fully Encapsulated: Moisture, vibration, and corrosion resistance |
| Mounting | Surface or Hideaway |
| Included Cables & Hardware | 9' (2.74 m) 22 AWG Cable |
| Certifications |
SAE Standards SAE Class 2 SAE Class 3 SAE J595 SAE J845 Enviornmental IP67 Regulatory Compliance CA Title 13 CISPR 25 R10 |
| Warranty | 10-year |
| Voltage | 12 VDC |
| Amps | 0.75 (peak), 0.3 (avg.) |
| Size |
Omnidirectional Models: Height: 0.95” (24 mm) Diameter: 1.49” (3.78 cm) |
DOCUMENTATION
Product Sheets & Brochures
| Specification name | Specification Value |
|---|---|
| Color pattern | Amber, Blue, Red, White |
Whelen Vertex
Amber / Not RequiredGet notified when this item is back in stock
Press & drag to view
Smoked Lens
Regular Lens
