The Pioneer Nano™ is the smallest and most compact member of the Pioneer™ white lighting family, offering the same powerful Super-LED® lighting in a space-saving design. Despite its size, this work light delivers exceptional brightness, making it ideal for fire, EMS, law enforcement, and utility vehicles that require focused scene lighting in confined spaces. Its unique removable lens retainer allows for quick and easy lens changes, offering flexibility to adapt to different lighting needs and environments. Built for durability, the Pioneer Nano withstands tough conditions while delivering reliable, long-lasting performance. Its compact design ensures versatile mounting options, making it an excellent choice for vehicles that need robust lighting without compromising space.
FEATURES
- Instant Response: LEDs provide immediate On/Off functionality, eliminating high inrush current and ramp-up time
- Daylight Simulation: Correlated Color Temperature (CCT) of 5,700° Kelvin simulates bright midday light for optimal visibility
- Easy Lens Replacement: Removable lens retainer allows quick and hassle-free optic lens changes
SPECIFICATIONS
| Optics |
Super-LED® Spotlight: Standard: 8° Spotlight Pattern Lens Additional Included Lens: 40° x 20° Flood |
| Customization |
Configuration: 3-LED or 6-LED Housing: Black or White |
| Construction |
Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals Injection Molded Polycarbonate Lenses: Provide impact resistance Die-Cast Aluminum Powder-Coated Housing 100% Solid-State Electronics |
| Mounting | Bail Bracket mount |
| Included Cables & Hardware | Powder-coated stainless steel bail bracket with 1/4”-20 stud carriage bolt |
| Certifications |
Environmental IP67 |
| Warranty | 5-year |
| Voltage | 12/24 VDC |
| Amps |
NP3B*: 1.0 (avg.) NP6B* 1.5 (avg.) |
| Size |
Width: 3.50" (8.89 cm) NP3B* Height: 2.23" (5.66 cm) NP6B* Height: 3.00" (7.62 cm) Depth: 1.77" (4.50 cm) |
DIMENSIONS
DOCUMENTATION
Product Sheets & Brochures
| Specification name | Specification Value |
|---|---|
| Color pattern | White |
| Fit type | Surface Mount |
| Lighting features | 3 LED, 6 LED |

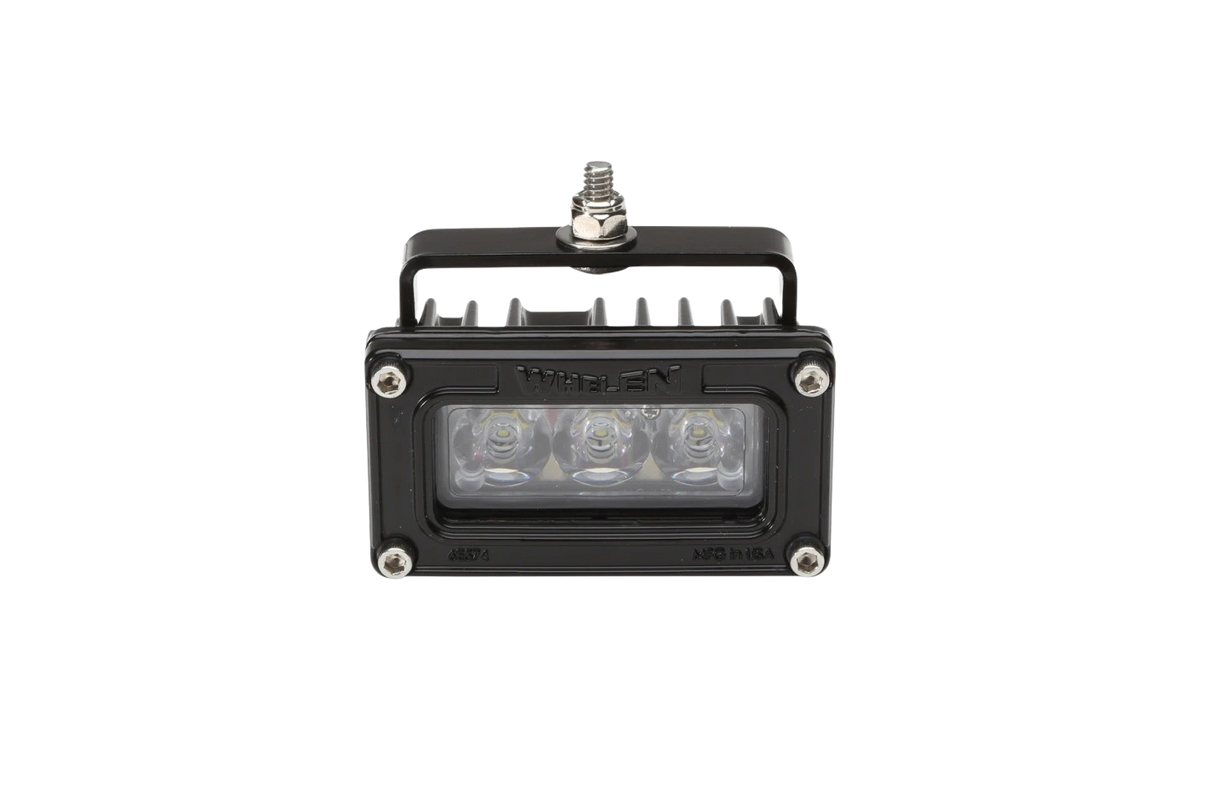

Whelen Pioneer Nano
3 LED / Black / WhiteGet notified when this item is back in stock
