Description

Dimensions

Documentation

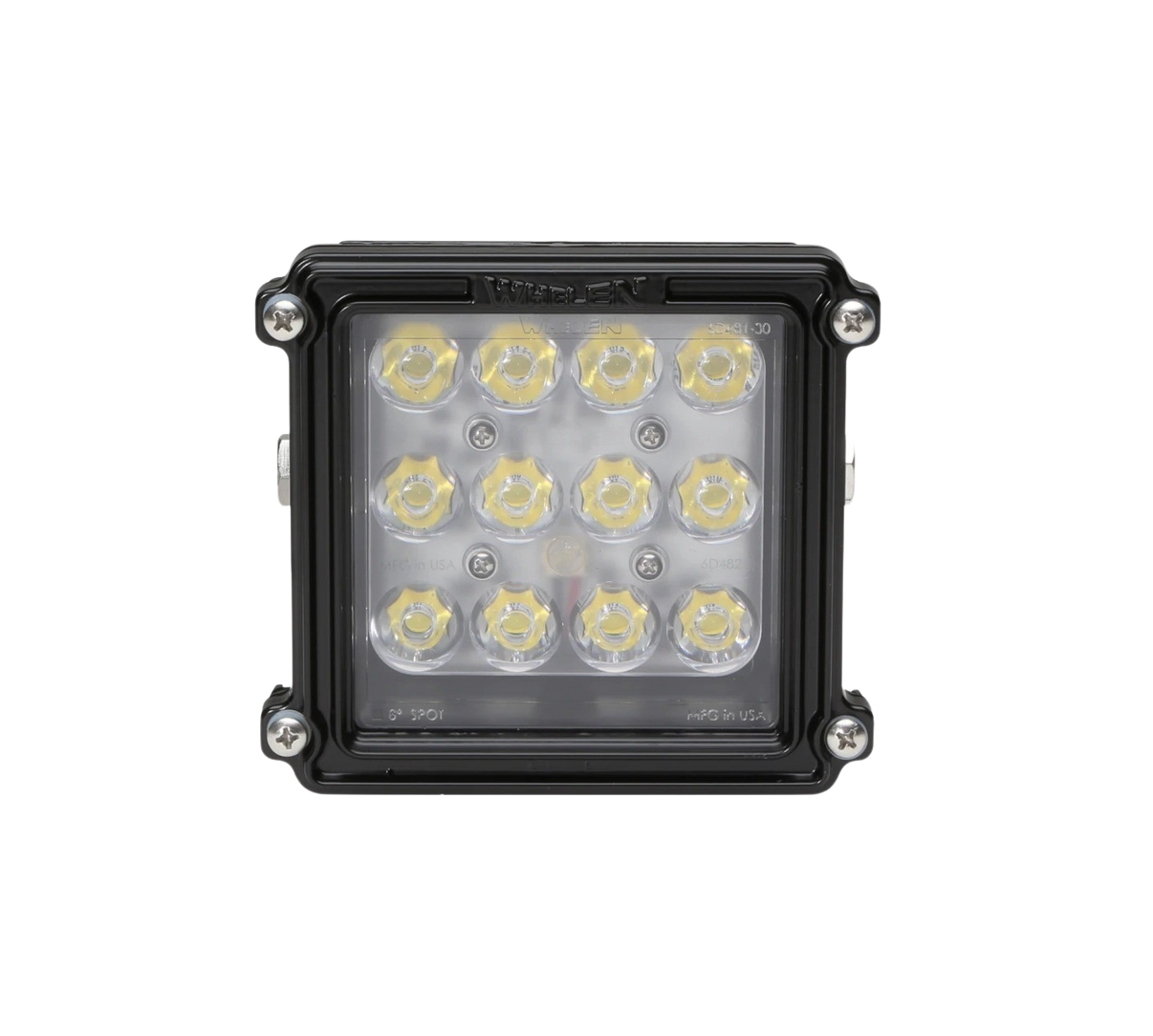

The Pioneer Micro™ is a compact yet powerful scene light, providing superior Super-LED® illumination for a wide range of applications. Like others in the Pioneer™ family, it features a removable lens retainer, allowing for quick and easy changes of the optic lens to accommodate different lighting needs. This versatility makes the Pioneer Micro suitable for various industries, including construction and emergency services such as fire, EMS, and law enforcement. With multiple mounting options, the Pioneer Micro can be easily installed on a variety of vehicle types, offering flexibility for both permanent and temporary setups. Its rugged design ensures long-lasting performance in even the harshest conditions, providing reliable and efficient lighting when and where it’s needed most.

FEATURES

Instant Response: LEDs provide immediate On/Off functionality, eliminating high inrush current and ramp-up time
Daylight Simulation: Correlated Color Temperature (CCT) of 5,700° Kelvin simulates bright midday light for optimal visibility
Easy Lens Replacement: Removable lens retainer allows quick and hassle-free optic lens changes

SPECIFICATIONS

Optics	Super-LED® Spotlight Standard: 8° Spotlight Pattern Lens Additional Included Lenses: 40° x 20° Flood, 40° x 8° Narrow Flood, and 90° x 20° Wide Flood
Customization	Housing: Black or White
Construction	Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals Injection Molded Polycarbonate Lenses: Provide impact resistance Die-Cast Aluminum Powder-Coated Housing 100% Solid-State Electronics
Mounting	Stud, Recessed, Pole, or Pedestal mount
Included Cables & Hardware	6’ (1.83 m) cable
Certifications	SAE Standards SAE 578 Color Temperature Environmental IP67
Warranty	5-year
Voltage	12/24 VDC
Amps	12 VDC: 3.5 (avg.) 24 VDC: 1.75 (avg.)
Size	Bail/Stud Mount Models Width: 4.76” (12.10 cm) Height: 4.25” (10.80 cm) Depth: 2.80” (7.11 cm) Pedestal/Swivel Mount Models: Width: 5.06" (12.85 cm) Height: 8.69" (22.07 cm) Depth: 3.75" (9.53 cm) Recessed Mount Models: Width: 7.69" (19.53 cm) Height: 6.94" (17.63 cm) Depth: 2.56" (6.50 cm)
