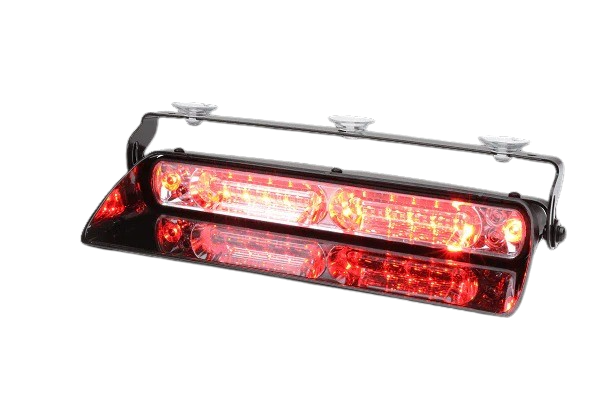

Whelen Avenger II

Compact, versatile, and powerful, the Whelen Avenger® II is the perfect lighting solution for a variety of emergency and service vehicles. Featuring Whelen’s advanced Super-LED® technology, it delivers superior visibility in a compact housing, making it ideal for use in police, fire, and EMS vehicles as well as utility service trucks. The Avenger II is designed for easy mounting on the windshield or rear deck, providing a sleek yet highly effective warning light that can be deployed in various situations.

FEATURES

Universal swivel bracket with three suction cups will fit the contour of any windshield or can be used for permanent mount
Combination Linear/TIR optics provide high intensity warning and illumination and a smaller profile maximizes space for optimal versatility.
Compact and inconspicuous design
Simple to transfer from vehicle to vehicle

SPECIFICATIONS

Optics	Combination Linear/TIR™ Super-LED®: SOLO™, DUO™, and TRIO™ models available
Technology	SmartLED®: Self-contained electronics power and flash LEDs without the need for external flashers, ballasts, or power supplies. Scan-Lock™: Advanced flash pattern control
Flash Patterns	Single Lamp Models: 26 Scan-Lock™ flash patterns Dual Lamp Models: 55 Scan-Lock™ flash patterns
Control	SmartLED or Steady
Customization	Configuration: SOLO™ Single Lamp, SOLO™ Dual Lamp, DUO™ Single Lamp, DUO™ Dual Lamp, TRIO™ Single Lamp, TRIO™ Dual Lamp Wiring: Cigar Plug or Hard-Wired Optional Additions: Headliner Mounting Bracket, Low-Profile Headliner Mounting Bracket, or Visor Mouning Bracket
Construction	Black Polycarbonate Housing Conformal Coated Electronics: Environmental, moisture, and vibration resistance 100% Solid-State Electronics
Mounting	Suction Cup
Included Cables & Hardware	10' (3.05 m) Cigar Cord or 18 AWG 9" (22.86 cm) Pigtail Cigar Cord includes built-in On/Off and Scan-Lock™ pattern control switches
Certifications	SAE Standards SAE Class 1 SAE J595 SAE K845 Emergency Vehicle Standards NFPA 1900 Contributor Regulatory Compliance CA Title 13 R10
Warranty	5-year
Voltage	12 VDC
Amps	Single Lamp: 0.4 (avg.)
Size	Single Unit Width: 6.50" (16.51 cm) Height: 1.75" (4.45 cm) Depth: 4.50" (11.43 cm) Dual Unit Width: 10.20" (25.91 cm) Height: 1.75" (4.45 cm) Depth: 4.50" (11.43 cm) Adjustable Mounting Bracket (All Models) Height: 1.60" (4.06 cm) to 2.90" (7.37 cm)

DIMENSIONS

DOCUMENTATION

Product Sheets & Brochures

Avenger II - Download

Product specifications table
Specification name	Specification Value
Color pattern	Red, Blue, Amber, Red/Blue, Blue/White, Red/White , Amber/White, Red/Blue/White
Fit type	Window Mount
Lighting features	Single Colour (SOLO), Dual Colour (DUO), Split Colour (SOLO), Triple Colour (TRIO)

Color pattern

Red, Blue, Amber, Red/Blue, Blue/White, Red/White , Amber/White, Red/Blue/White

Fit type

Window Mount

Lighting features

Single Colour (SOLO), Dual Colour (DUO), Split Colour (SOLO), Triple Colour (TRIO)
