The HHS Series from Whelen offers a compact and durable solution for siren and light control. Built with a black molded amplifier housing, the HHS Series is engineered for maximum durability in tough environments. The system comes with preset siren tones, including Wail, Yelp, Piercer, Manual Siren, and Airhorn, providing reliable auditory warning signals for emergency vehicles in any situation. The HHS Series offers three control head options and is fully customizable using Windows-based programming software, allowing users to configure the system to meet their specific needs. It also comes equipped with external spade-type fuses and a 20-foot interconnect cable for seamless installation. Whether used in police, fire, or EMS vehicles, the HHS Series ensures effective control of lights and sirens for enhanced safety and operational efficiency.
FEATURES
- Powerful Siren Amplifier: Features 9 total ouputs, standard switching, and can support one or two 100-watt speakers for versatile warning capabilities
- Customizable Control Heads: Choose from three user-configurable, ergonomically designed control heads to enhance situational awareness and ease of use
- Preset Siren Tones: Includes Wail, Yelp, Piercer, Manual Siren, and Airhorn tones as standard presets for reliable sound signaling
-
Expanded Tone Library: Offers 37 tones, including mechanical tones and California Yelp, to meet a wide range of operational needs
- Public Address System: All controllers include a PA Microphone
SPECIFICATIONS
| Inputs/Outputs | 9 Total Outputs (8) 10 amp Relays (1) 15 amp Relay |
| Devices | Operates (1) or (2) 100-watt Speakers HHS 3200: Compatible with low current or high current products, or any light with a built-in flasher |
| Compatible Control Heads | CANCTL5, CANCTL6, CANCTL7 |
| Control | WeCan® |
| Customization |
Included Controller: CANCTL5 (Hand-Held), CANCTL6 (Slide Switch and Rotary Knob), CANCTL7 (21 Push-Buttons and Slide Switch) |
| Construction | Black Molded Housing: Built for durability |
| Mounting | External Spade-Type Fuses |
| Included Cables & Hardware | 20’ (6.10 m) interconnect cable |
| Certifications |
SAE Standards SAE Class 1 Emergency Vehicle Standards KKK-A-1822F Regulatory Compliance CA Title 13 AMECA CISPR 25 R10 Certifications applicable when paired with one Whelen 100-watt speaker |
| Warranty | 2-year |
| Voltage | 12 VDC |
| Amps | 8 x 10.0 amp Relay Outputs 1 x 15.0 amp Relay Output |
| Size |
Height: 7.46” (18.95 cm) Width: 8.49” (21.56 cm) Depth: 2.35” (5.97 cm) |
DIMENSIONS
Whelen HHS3200

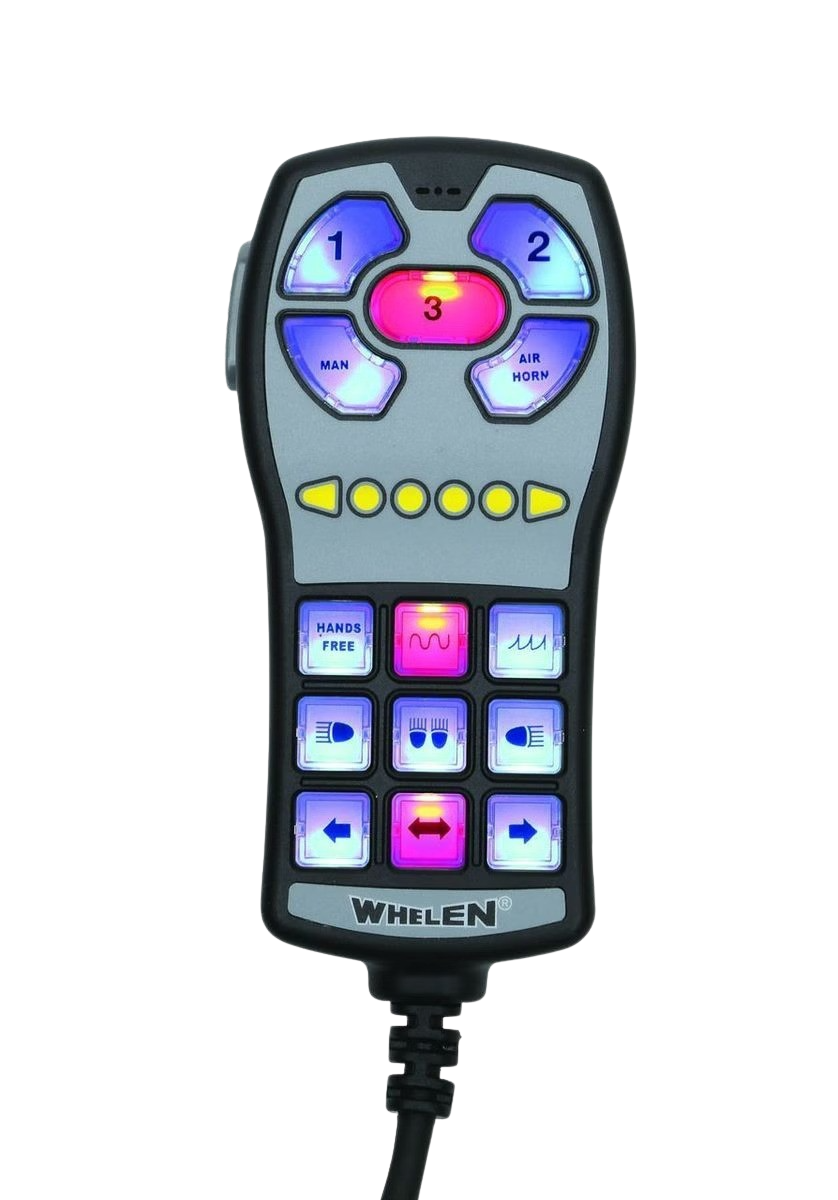

CANCTL5 - Handheld Controller (Built In PA)Get notified when this item is back in stock
