Whelen Core-R (Traffic Control Vehicles)

Limited-Time Offer

NEWUSER |

Copy

00 d

00 h

00 m

$1,500.00 NZD

SPECIAL ORDER PRODUCTCore-R® DOT is designed to optimize safety and efficiency for Department of Transportation (DOT) vehicles, offering complete configurability, advanced automation, and remote connectivity. Powered by our WeCanX® CAN-based...

Inputs/Outputs Required: 12 Inputs & 16 Outputs

12 Inputs & 16 Outputs 16 Inputs & 32 Outputs

Controller Type: No Controller

No Controller CCTL5 - Handheld Controller (Built In PA) CCTL8 - Slide Controller - 6 Push Buttons CCTL10 - Master Push Button - 21 Push Buttons CCTL7 - Slide Controller - 21 Push Buttons

Product variants

Quantity:

Whelen Core-R (Traffic Control Vehicles)

$1,500.00 NZD

12 Inputs & 16 Ou...

Payment and security

View details

Description

Dimensions

Documentation

SPECIAL ORDER PRODUCT

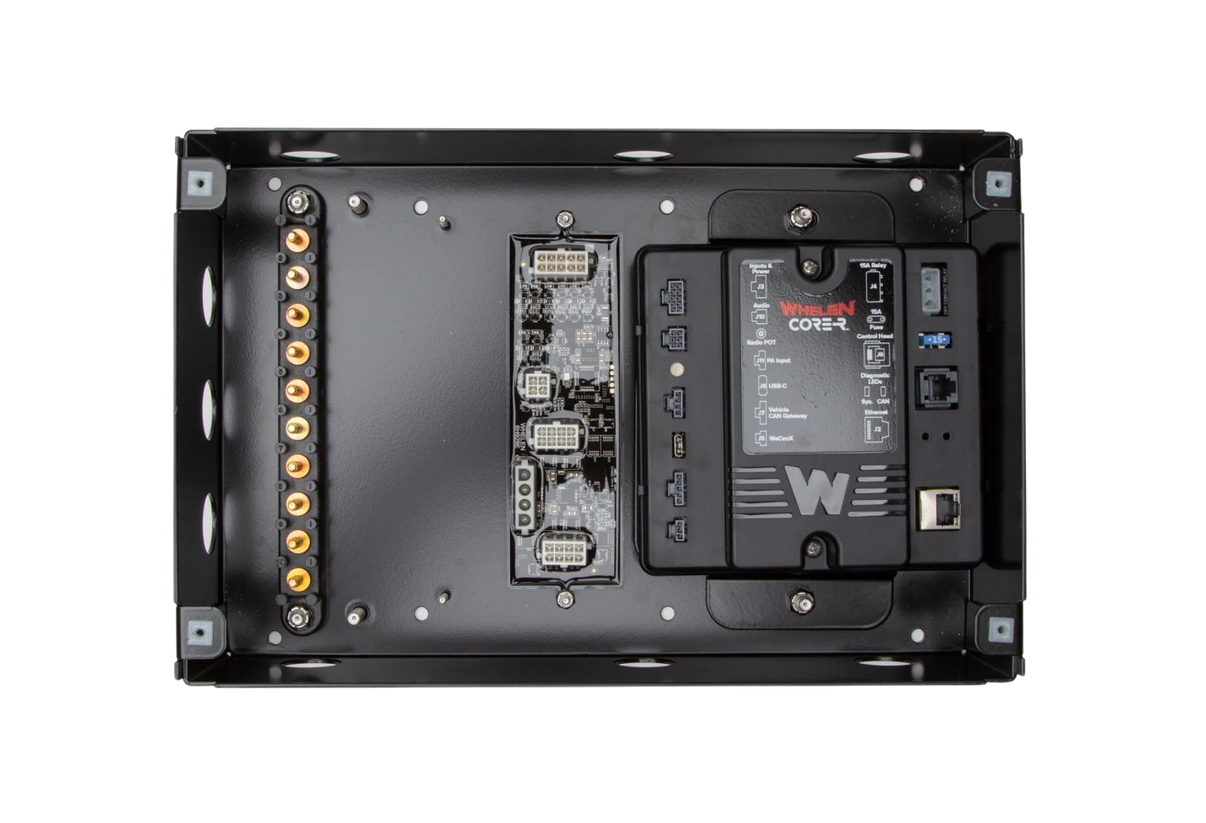

Core-R® DOT is designed to optimize safety and efficiency for Department of Transportation (DOT) vehicles, offering complete configurability, advanced automation, and remote connectivity.

Powered by our WeCanX® CAN-based communication system, Core-R DOT enables true system synchronization, delivering unrivaled speed, expanded peripheral add-ons, and full diagnostic support. Built to enhance both operator and motorist safety, this system features automatic brake/tail/turn override, which temporarily deactivates warning lights around brake lights and turn signals to improve vehicle visibility during turns and stops.

The modular design allows for quick, easy installation in tight spaces, and the durable junction box housing protects components from harsh weather. Core-R DOT integrates with a wide range of WeCanX-enabled lightbars and devices, offering limitless configurations. Core-R DOT is also compatible with Whelen Cloud Platform® (WCP®), which allows for remote firmware updates and makes it one of the most advanced control systems for DOT fleets.

EMERGENZ TOP TIPS:

Purchase a Core-R System if you want to set up a vehicle with all CORE features minus the use of sirens/PA. Great for traffic control trucks, tow trucks
Will work with all Whelen WCX Lightbars

FEATURES

Rugged Durability: Core-R® DOT offers the same advanced functionality as Core-R® with a durable junction box built to withstand the rigors of demanding DOT environments
Modular Design: Designed for quick and easy integration, with modular parts that can be installed in various locations throughout municipal vehicles
Tailored for You: Offers advanced automation and extensive configuration options, enabling fully customizable setups to fit any DOT application
Powered by WeCanX®: Built on the industry’s smartest and most advanced CAN-based communication system, delivering seamless integration and unprecedented system intelligence
Cloud-Ready: Fully integrates with the Whelen Cloud Platform® to leverage game-changing industry technology for streamlined system management and enhanced operational efficiency
Optional V2V Sync Module: Synchronizes flash patterns across multiple vehicles for enhanced coordination
Optional High Current Remote Expansion Module: Adds scene lights to the WeCanX system, enabling advanced control for flashing, dimming, or gradual light intensity adjustments to create a calmer scene

SPECIFICATIONS

Inputs/Outputs	8 Total Inputs 3 Digital Inputs 4 Analog Inputs 1 Ignition Power-Up Input 1 Total Output 1 Dry Contact Relay Output
Devices	Up to 99 WeCanX® Devices V2V Sync Module
Compatible Control Heads	CCTL5, CCTL6, CCTL7, CCTL8, CCTL9, CCTL10, CCTL11
Technology	Dynamic Variable Intensity™ (DVI™): Gradually increase or decrease the output intensity within a flash pattern or tone Vehicle-to-Vehicle (V2V) Sync: Automatically synchronize lights and tones on vehicles within any proximity to aid approaching motorists Tone Sync: Sync amplifiers and speakers together and sync tones with lights (Patent-Pending) Whelen Cloud Platform®: Connect to the state-of-the-art, cloud-based vehicle communication system
Expansion Modules	Compatible with High Current, 8, 16 (12 VDC and 10-30 VDC models), and 24-Output Expansion Modules Steady-Lock® enabled through Remote Expansion Modules
Control	WeCanX®
Customization	Available Modules: V2V Sync, High Current Remote Expansion
Certifications	SAE Standards SAE Class 1 Emergency Vehicle Standards KKK-A-1822F Regulatory Compliance CA Title 13 AMECA CISPR 25 R10 Certifications applicable when paired with one Whelen 100-watt speaker
Warranty	10-year
Voltage	10-30 VDC
Amps	C399RD1: 42 (peak) Average operating current varies based on models connected C399RD2: 82 (peak) Average operating current varies based on models connected
Size	Height: 3.00" (7.62 cm) Width: 8.53" (21.67 cm) Depth: 13.00" (33.02 cm)
