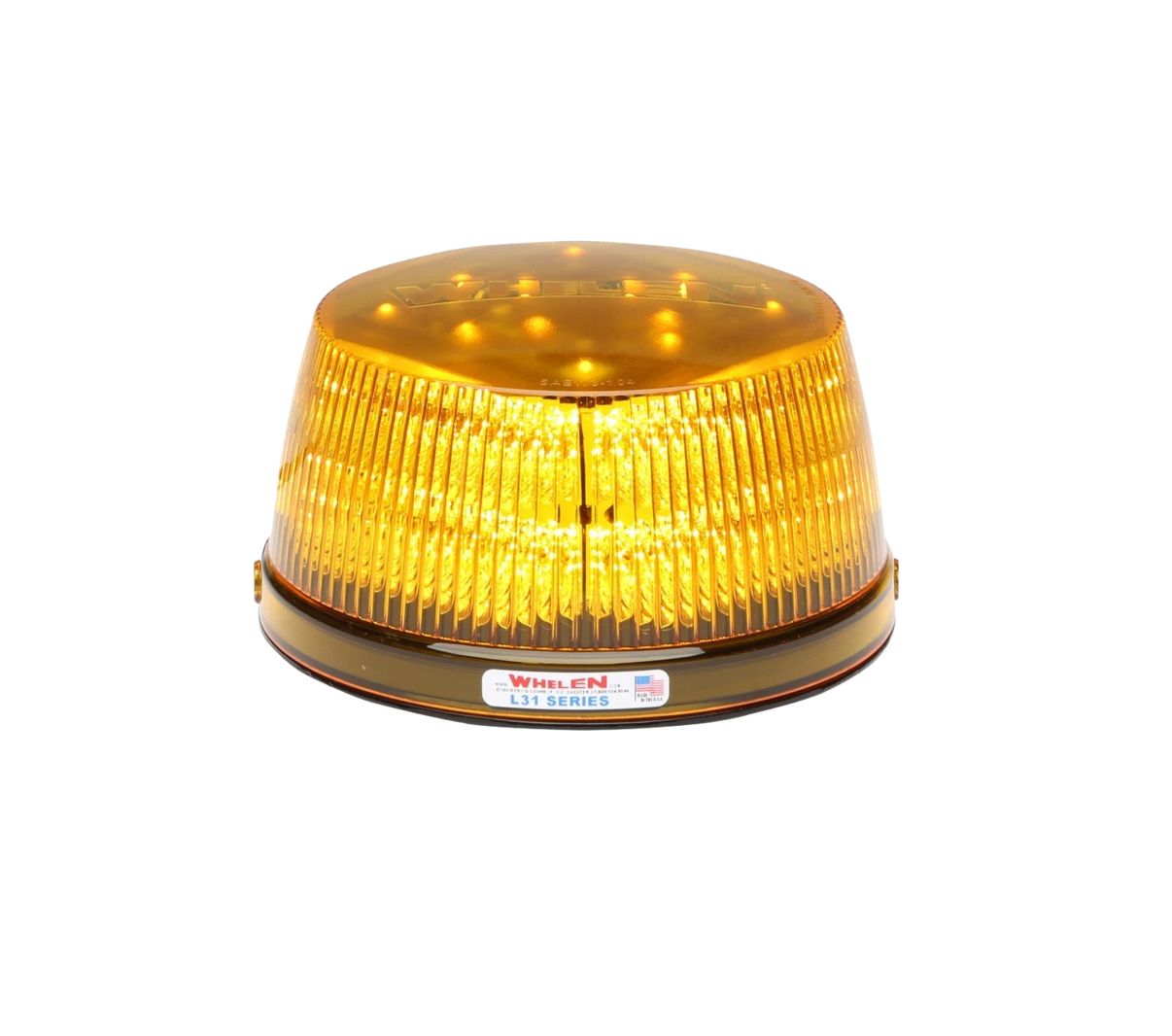

The Whelen L31 beacon provides 360-degree warning coverage for emergency vehicles, using Super-LED® technology and multiple flash patterns. Its durable construction and long-lasting performance make it a reliable choice for any fleet.
FEATURES
- High-Profile Dome: Smooth, self-cleaning polycarbonate dome ensures maximum visibility and long-lasting durability
- Split Colors Available: Enhance visibility with dual-color beacon options
- Variable Power Control: Choose between Hi/Low power modes (Permanent Mount Models)
- Long-Lasting Performance: Rated for thousands of hours of reliable operation
SPECIFICATIONS
| Optics | Super-LED® Beacon |
| Technology |
Dynamic Variable Intensity™ (DVI™): Gradually adjusts light intensity for improved nighttime visibility and safety Scan-Lock™: Advanced flash pattern control Sync: Connect multiple Whelen devices for synchronized or alternating flash patterns |
| Flash Patterns |
Permanent Mount: 69 Scan-Lock™ flash patterns plus 4 Simulated Rotating Patterns Magnetic Mount: SignalAlert™ 75 Only |
| Control | SmartLED® |
| Customization |
Configuration: Single- or Split-Color Optional Additions: Branch Guard, Mirror Mount Bracket, or Shelf Mount Bracket |
| Construction |
Hard-Coated Polycarbonate Dome: Resists environmental damage from sand, sun, salt, and road chemicals Powder-Coated, Die-Cast Base Conformal Coated Electronics: Environmental, moisture, and vibration resistance Minimal RFI/EMI Radiation: Virtually zero radio frequency or electromagnetic interference Durable: Rated to last thousands of hours |
| Mounting | Permanent, Magnetic, or Magnetic/Suction |
| Included Cables & Hardware |
Permanent: 18 AWG 12" (30.48 cm) Pigtail Magnetic, Magnetic/Suction: 10' (3.05 m) Cigar Cord |
| Certifications |
SAE Standards SAE J595 SAE J845 Emergency Vehicle Standards NFPA 1900 Contributor KKK-A-1822F Contributor Regulatory Compliance CA Title 13 R10 R65 |
| Warranty | 5-year |
| Voltage | 12/24 VDC |
| Amps |
12VDC: 4.0 (peak), 1.6 (avg.) 24 VDC: 1.30 (peak,) 0.52 (avg.) |
| Size |
Height: 4.00" (10.16 cm) Diameter: 7.20" (18.29 cm) |
DIMENSIONS
DOCUMENTATION
Product Sheets & Brochures
| Specification name | Specification Value |
|---|---|
| Color pattern | Amber, Red, Blue, Green |
| Fit type | Surface Mount, Magnetic/Suction Mount |
| Lighting features | Low Intensity (500 Lumens), High Intensity (1000 Lumens) |
Whelen Beacon L31
