The Whelen L32 beacon is a durable and versatile warning light designed for emergency and roadside situations. With advanced Super-LED® technology, it offers powerful 360-degree coverage and long-lasting performance. Its rugged construction ensures reliable operation in any weather condition.
FEATURES
- Low-Profile Dome: Smooth, self-cleaning polycarbonate dome with a sleek, compact design
- Variable Power Control: Choose between Hi/Low power modes (Permanent Mount Models)
- Long-Lasting Performance: Rated for thousands of hours of reliable operation
SPECIFICATIONS
| Optics | Super-LED® Beacon |
| Technology |
Dynamic Variable Intensity™ (DVI™): Gradually adjusts light intensity for improved nighttime visibility and safety Scan-Lock™: Advanced flash pattern control Sync: Connect multiple Whelen devices for synchronized or alternating flash patterns |
| Flash Patterns |
Permanent Mount: 69 Scan-Lock™ flash patterns plus 4 Simulated Rotating Patterns Magnetic Mount: SignalAlert™ 75 Only |
| Control | SmartLED® |
| Customization | Optional Additions: Branch Guard, Mirror Mount Bracket, or Shelf Mount Bracket |
| Construction |
Hard-Coated Polycarbonate Dome: Resists environmental damage from sand, sun, salt, and road chemicals Powder-Coated, Die-Cast Base Conformal Coated Electronics: Environmental, moisture, and vibration resistance Minimal RFI/EMI Radiation: Virtually zero radio frequency or electromagnetic interference Durable: Rated to last thousands of hours |
| Mounting | Permanent, Magnetic, or Magnetic/Suction |
| Included Cables & Hardware |
Permanent: 18 AWG 12" (30.48 cm) Pigtail Magnetic, Magnetic/Suction: 10' (3.05 m) Cigar Cord |
| Certifications |
SAE Standards SAE Class 1 SAE J595 SAE J845 Emergency Vehicle Standards NFPA 1900 Contributor KKK-A-1822F Contributor Regulatory Compliance CA Title 13 R10 R65 |
| Warranty | 5-year |
| Voltage | 12/24 VDC |
| Amps |
12 VDC: 1.4 (peak), 0.56 (avg.) 24 VDC: 1.3 (peak), 0.52 (avg.) |
| Size |
Height: 2.63" (6.68 cm) Diameter: 7.19" (18.26 cm) |
DIMENSIONS
DOCUMENTATION
Product Sheets & Brochures
| Specification name | Specification Value |
|---|---|
| Color pattern | Amber, Red, Blue, Green |
| Fit type | Surface Mount, Magnetic/Suction Mount |
| Lighting features | Low Intensity (500 Lumens), High Intensity (1000 Lumens) |

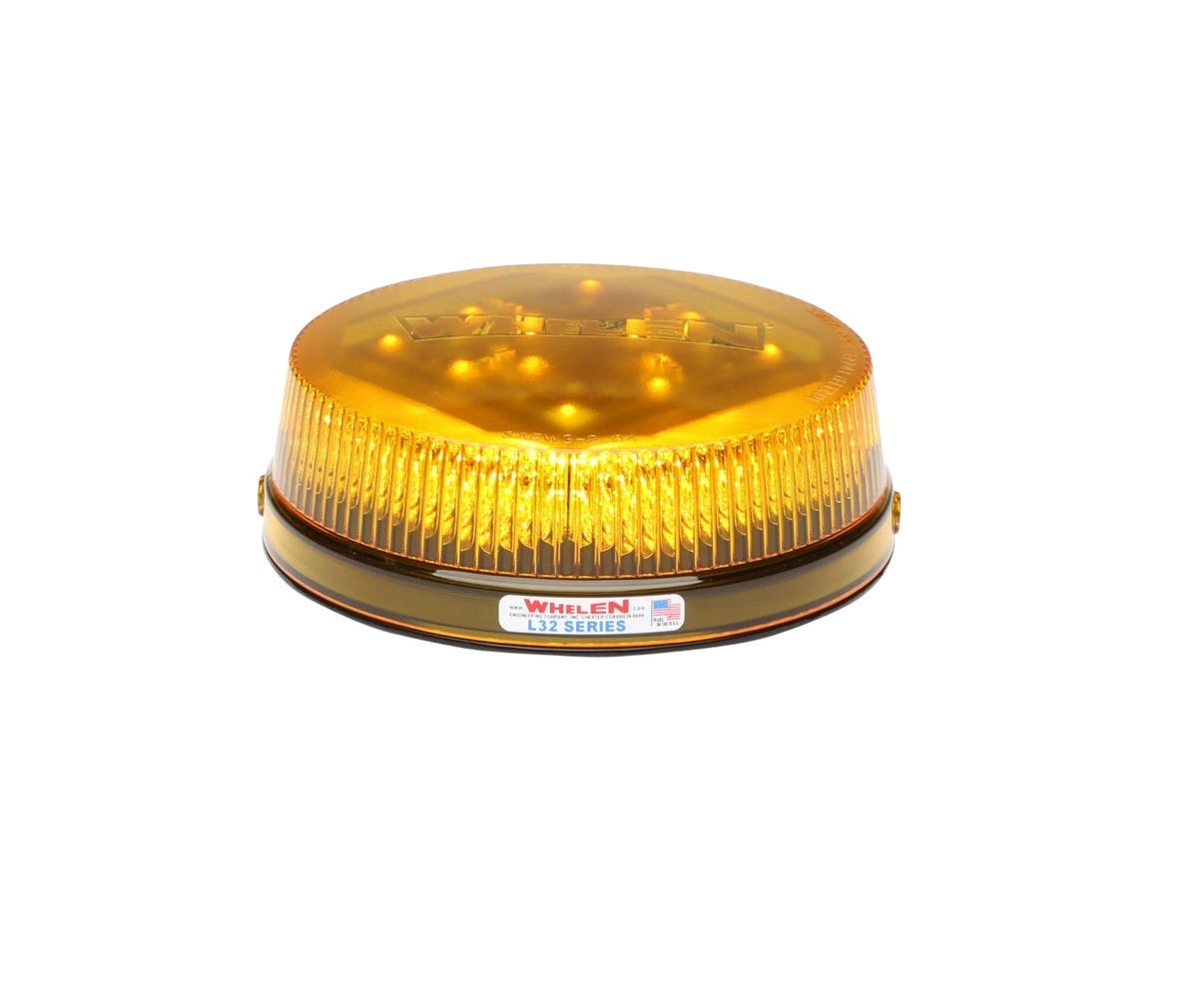

Whelen Beacon L32
Amber / Surface Mount / 12VGet notified when this item is back in stock
Press & drag to view
Smoked Lens
Regular Lens
